- Length (Tractor with Tires)–83 in
- Width (Over Rubber Tracks)–35 in
- Width (Over Rubber Tires)–35 in
- Height–46 in
- Weight (Tractor with Tires)–880 lbs
- Wheel Base From Centerline of Axles–33.2 in
- Tread Width with Rubber Tires (Centerline to Centerline)–8.5 in
- Fuel Tank–1.6 gal
- Hydraulic Tank–10.8 gal
- Hydraulic System–11.3 gal
- Engine Oil–.3 gal

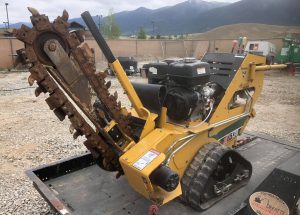

Trencher Vermeer RTX130 Pedestrian
Powered by a 13-hp (9.7-kW) Honda engine, this unit offers a 30-in (76.2-cm) digging depth and has the ability to maneuver in tight spaces at a 35-in (88.9-cm) width. The intuitive design of the industry-exclusive VZ steering allows ease of movement through difficult ground conditions.
VZ steering system
Steers effortlessly with the VZ steering system that requires minimal effort to the handle bars.
Narrow footprint
Fits into narrow areas with a footprint that measures only 35-in (88.9-cm) wide.
Operator presence system
Promotes on-the-job safety with an operator presence system that disengages the trencher and ground drives if the operator leaves the controls, in addition to a trenching cleat that restricts backward motion.
Trenching depth control
Elimination of the tail wheel on the track unit provides trenching depth control in uneven ground conditions and convenience to move through tight spaces.
High-torque digging
The RTX130 is equipped with a 13-hp (9.7-kW) Honda engine for optimal power on your jobsite.
Slender profile
A 35-in (88.9-cm) width allows the RTX130 to access small spaces — including passing through typical backyard gates.
